Hot Sale Automatic 24 heads bottled mineral water filling line

Products Description

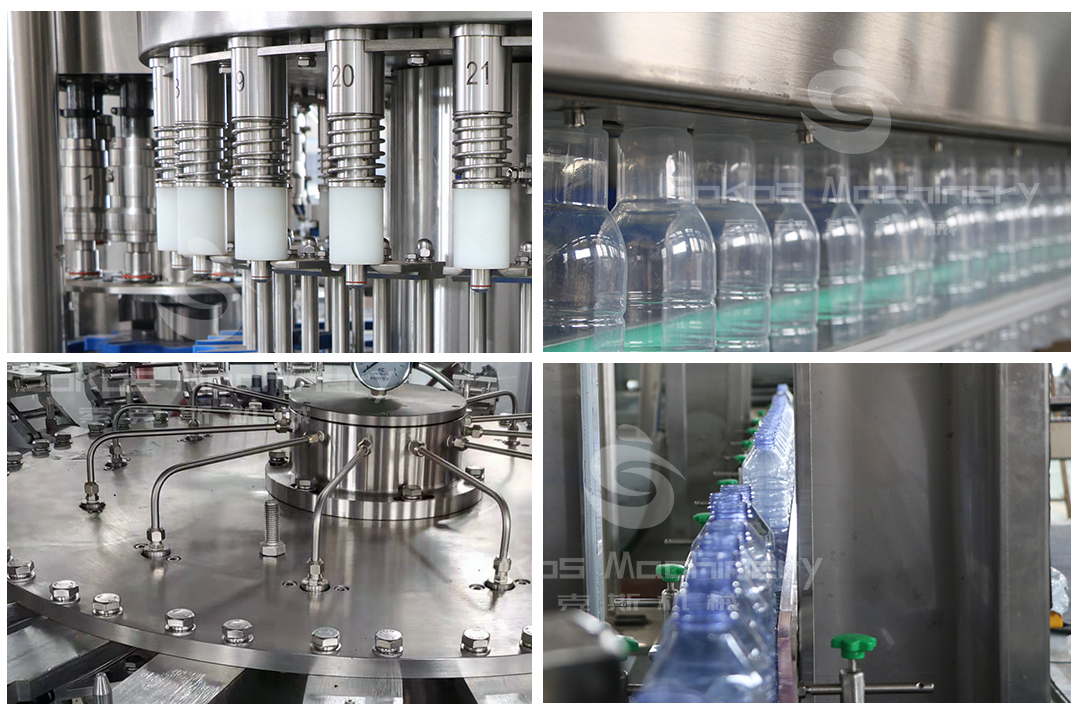

Automatic Bottled Mineral Water Filling Machine

1. Model CGF24-24-8

2.Capacity : 10000BPH (500ml)
3. Suitable : Plastic bottle 200ml-2000ml
4.Machine electric brand : SIEMENS ,MITSUBISHI, Schneider
5.Machine power : 3KW
6. Machine weight : 4000kg
7. Machine include function : Bottled water Filling
8.Application: Beverage Filling Line.

Model
CGF8-8-4
CGF14-12-5
CGF18-18-6
CGF24-24-8
Capacity
2500~3000bph
3500~4000bph
6500~7000bph
10000~12000bph
Bottle diameter
50~100mm
50~100mm
50~100mm
50~100mm
Bottle volume
0.2~2L
0.2~2L
0.2~2L
0.2~2L
Rinsing pressure
0.2~0.3Mpa
0.2~0.3Mpa
0.2~0.3Mpa
0.2~0.3Mpa
Rinsing water consumption
0.5T/H
0.5T/H
0.5T/H
0.5T/H
Filling precision
±2~3%
±2~3%
±2~3%
±2~3%
Power
3ph,380V/50Hz,1.5Kw
3ph,380V/50Hz,1.5Kw
3ph,380V/50Hz,2.2Kw
3ph,380V/50Hz,3Kw

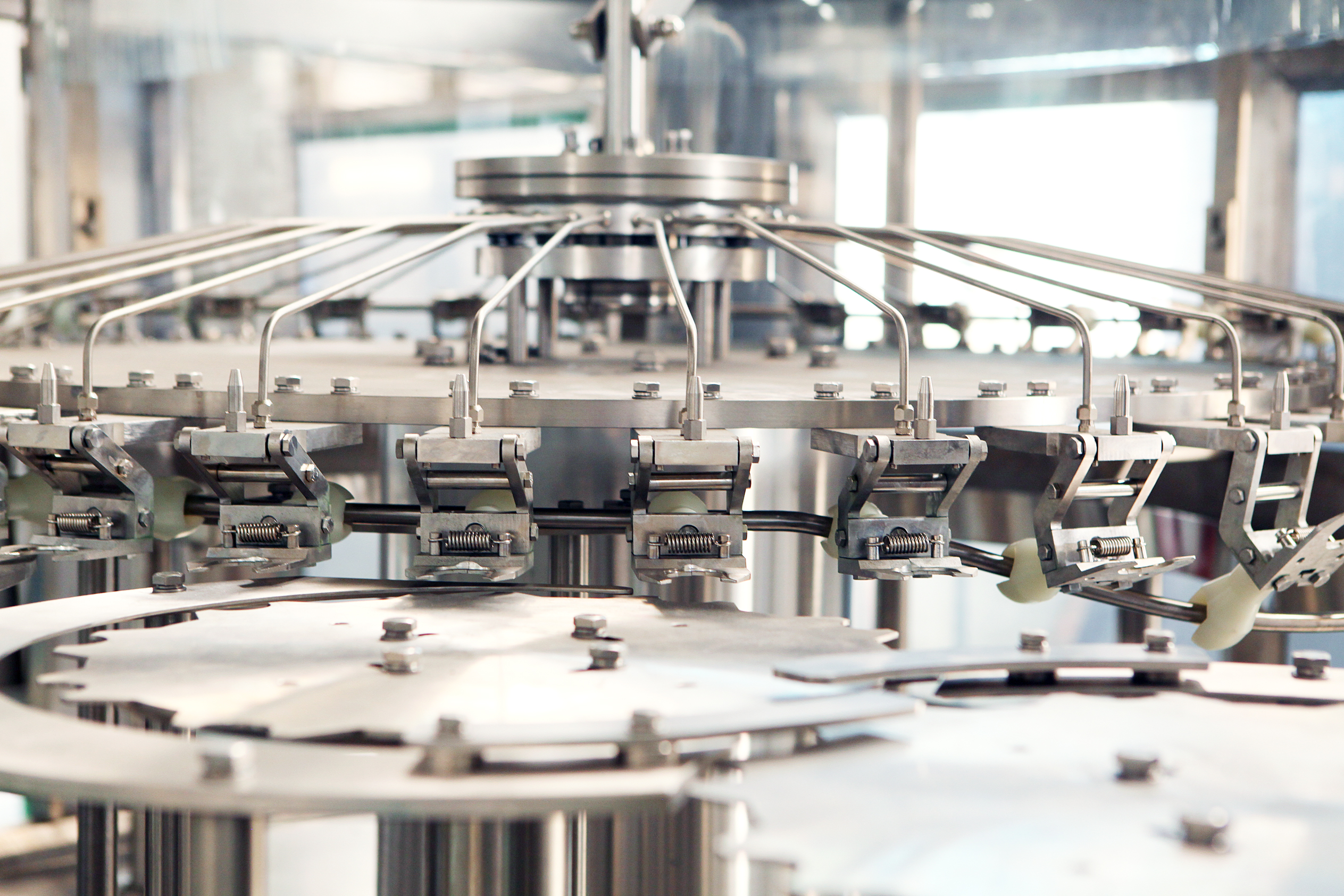

Washing Part:

– Into bottle way is air conveyor direct connection with bottle dial.
– All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

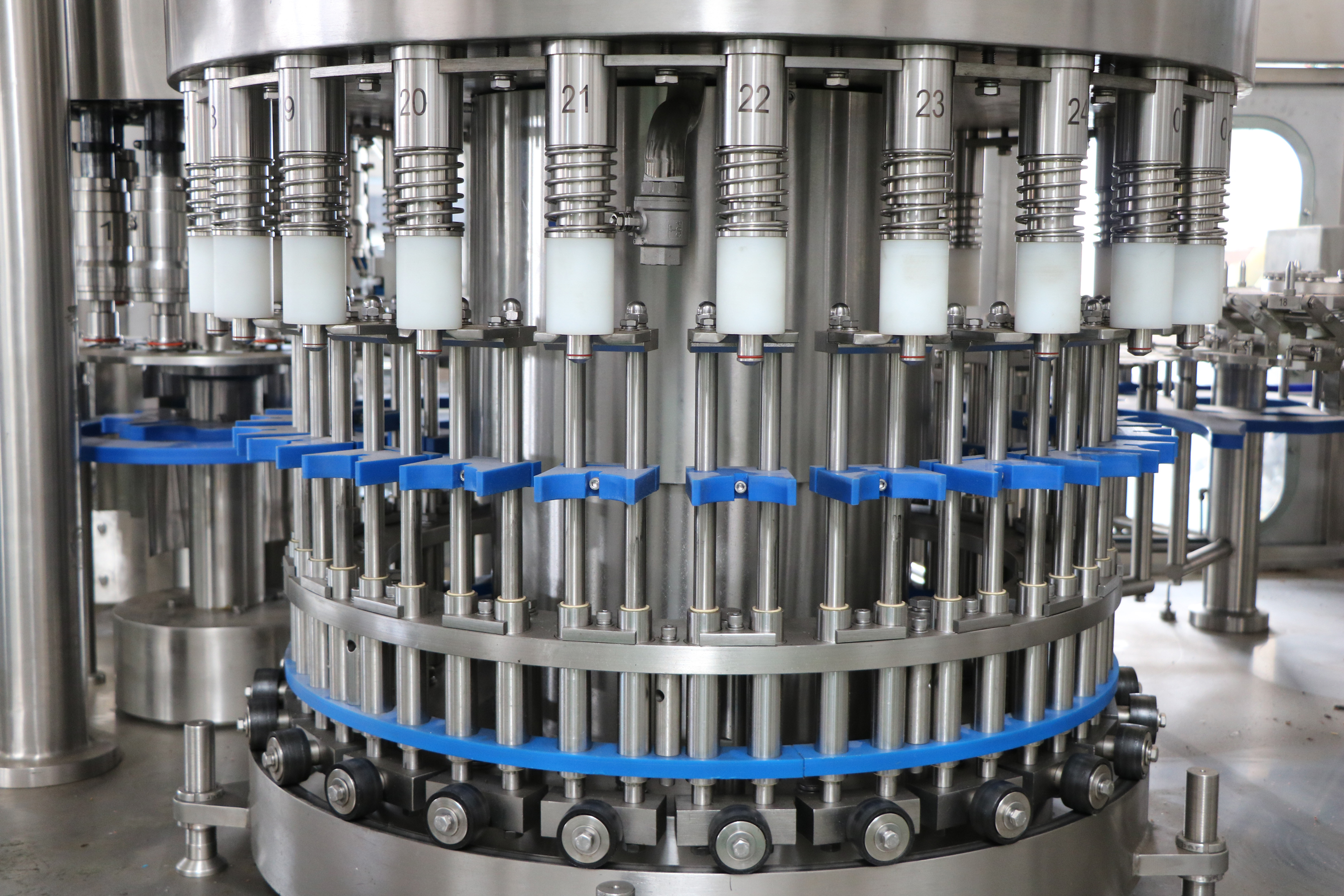

Filling Part:

– Filling volume adjustable in fine rank, same liquid level after filling- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

Capping Part:

-All 304/316 stainless steel construction- No bottle no capping- Capping effect is stable and reliable, Defective rate ≤0.15%
